Moving day

Once the seat tops were glued on the Goat got moved out of Dave's garage and under a temporary shelter in my back yard.  Hopefully now that it's at my house progress will be much faster.  Of course we have had one deluge day after another since the boat came home.  It's F#$%Q@#$ing pouring as I write this.  The shelter keeps most of the water off but still need a tarp to protect the boat.  Ah the joys of shade tree boat building.

Leaving Dave's garage

The new boat shed.

Fitting the seat tops

Aaargh I'm really doing a bad job keeping this blog current.  Boat building is inching along.  Finally got to fit and glue the seat tops.  Having the boat on it's trailer from early on has been a great help.  First of all the boat can be moved around easily but also the trailer is a rigid frame that allows for easy leveling of the boat.  It came in handy while fitting the seat tops as I was able to square the boat up using the trailer frame as a strong back.

Inside of forward buoyancy tank epoxy coated and ready for seat top.

Rear tank epoxy coated and ready to be sealed

Mid seat shaping to hull side contour.  I used the same basic procedure for the front and rear seat tops.  The front was pretty easy but the rear took a while because of the notches needed for the transom corner framing.

Butting the oversize seat top up against the hull side and transferring the hull contour by using a small scrap of ply as a guide.  Once one side is done repeat on other side but sneak up on it to not cut the seat too short.

  I levelled the dagger board case top fore and aft by adjusting the trailer tongue jack.  Once the dagger board case top was level I clamped the seat top to it and levelled it at the hull side then drew a pencil line on the hull side under the seat top.  This line is a guide to gluing on the mid seat side cleats.

Ziplock filled with thickened epoxy depositing a nice fat bead onto seat top supports.

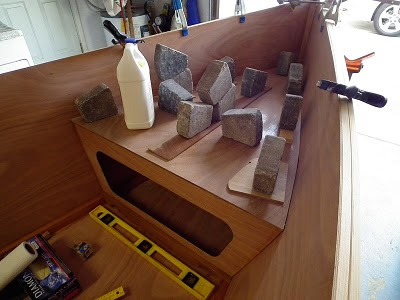

Took more weight than I thought to get the seat top to lay flat and in contact with all of the supports.

Front seat top being glued down.

Overview of the mess.

Total time to date 270hrs
